Analog Oscilloscopes    SS-Series Panel
Front panel (SS-7821A/7811A)

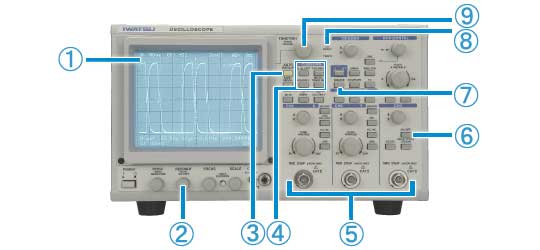

Front panel image(SS-7821A/7811A)


1 Bright, sharp CRT (Japan made)
2 Readout cancel button
3 Quick auto setup
4 Cursor function select buttons
5 Inputs with probe sensor function (with SS-103R, SS-0130R)
6 Sensitivity select switch
(50 mV/div, 100 mV/div, 500 mV/div)
7 Trigger source (VERT, CH1, CH2, CH3, LINE)
8 Trigger status indicators
9 Multifunction control knob
